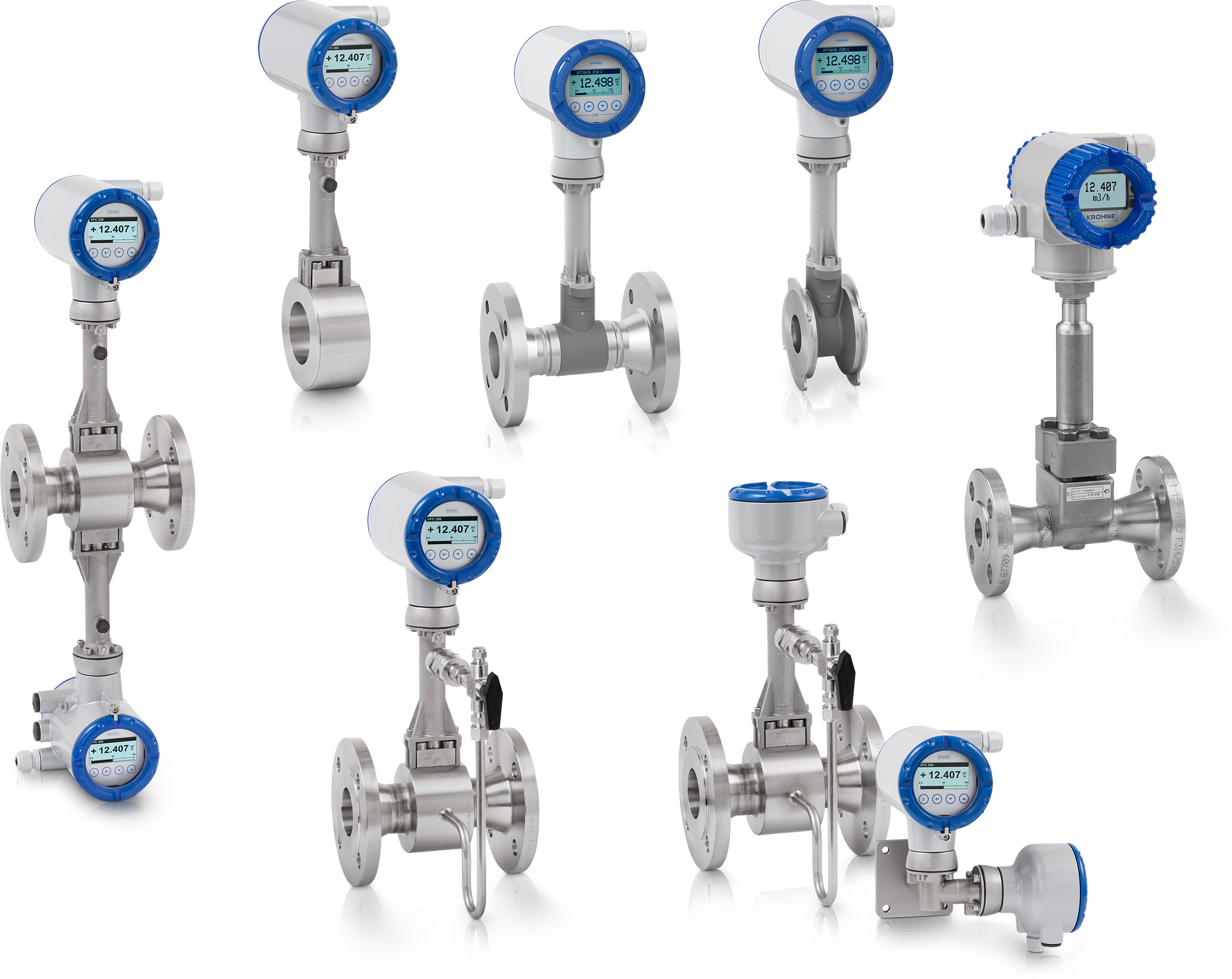

Vortex flowmeters

For utility applications, advanced energy management and Safety Instrumented Systems (SIS)

  • Sophisticated flowmeters with integrated pressure and temperature compensation and integrated energy calculator for advanced energy measurement
  • Certified for Safety Instrumented Systems (SIS)
  • Cost-effective and robust devices for harsh process conditions and/or basic applications

Filter

3 products
Industrial requirements
Communication

OPTISWIRL 4200

Vortex flowmeter for utility applications and energy management systems

  • For liquids, (wet) gases, saturated and superheated steam (+240°C / +464°F)
  • Integrated P+T measurement: direct output of mass, nominal flow, energy, gross/net heat
  • Flange: DN15…300 / ½…12"; wafer version: max. DN100 / 4"
  • 2-wire, 4…20 mA, HART®, FF, Profibus-PA

OPTISWIRL 5080

Vortex flowmeter for high temperature applications

  • For liquids, gases and steam up to +427°C / +800°F
  • Adaptive filtering and signal conditioning
  • Flange: DN15…300 / ¾…12", max. PN160 / ASME 1500 lb;
    Sandwich version: max. DN200 / 8"
  • 2-wire, 4…20 mA, HART®

OPTISWIRL 2100

Vortex flowmeter for basic utility applications

  • For liquids, (wet) gases, saturated and superheated steam (+240°C / +464°F)
  • Available with integrated nominal diameter reduction for a large measurement span also in pipelines with large diameters
  • Flange: DN15…300 / ½…12"; wafer version: max. DN100 / 4"
  • 2-wire, 4…20 mA, HART®7
