OPTISONIC 6300

Ultrasonic clamp-on flowmeter for flow measurement of liquids

Stationary device, for installation at any location without process interruption or need to cut pipes
Up to +200°C / +392°F
Robust stainless steel sensor rail for pipes DN15…4000 / ½…160"
4…20 mA, HART^®7, Modbus, FF, Profibus-PA/DP

Product variants

OPTISONIC 6300

Ultrasonic clamp-on flowmeter for flow measurement of liquids

Stationary device, for installation at any location without process interruption or need to cut pipes
Up to +200°C / +392°F
Robust stainless steel sensor rail for pipes DN15…4000 / ½…160"
4…20 mA, HART^®7, Modbus, FF, Profibus-PA/DP

Product variants

Overview

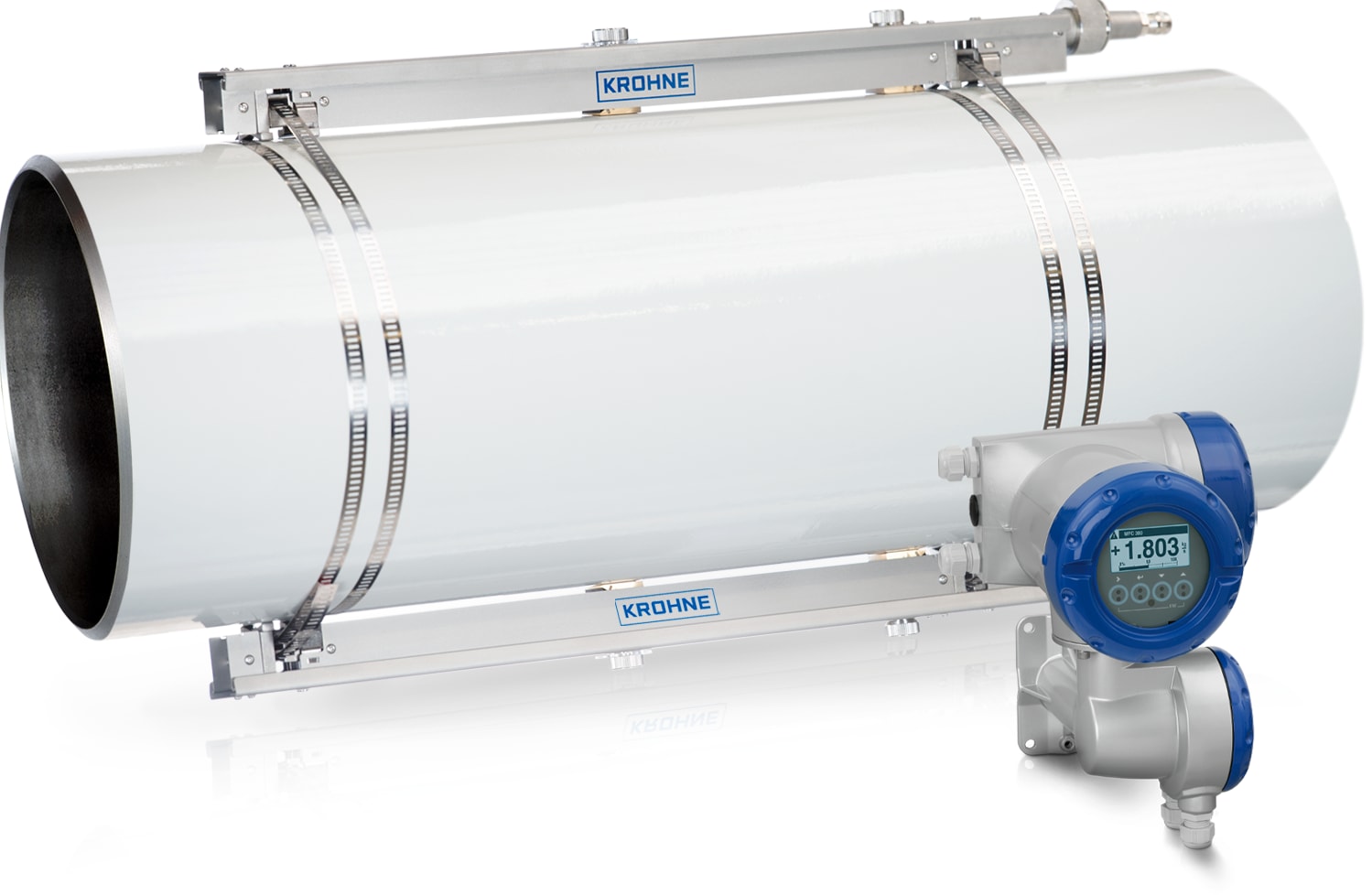

The OPTISONIC 6300 is an ultrasonic clamp-on flowmeter for permanent mount installation. It is particularly suitable for flow measurement of (non-)conductive liquids at any location where inline measurement is not possible or desirable. The flowmeter consists of a stainless steel sensor rail with two integrated transducers or for large pipe sizes of a sensor rail set with two rails and integrated transducers in each rail. Any version comes with a wall-mounted or field mounted ultrasonic signal converter. Its robust clamp-on rail is highly flexible and can be very easily attached to virtually any pipe up to DN4000 / 160".

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

Robust industrial design to provide maximum reliability
Easy and accurate sensor mounting using a stainless steel rail system
Minimal maintenance using efficient re-greasing concept or solid coupling pads
Optimal accuracy due to factory flow calibration
X-mode dual path sensor for extra reliability
Measurement range: 0.1...20 m/s (200:1)
Integrated thermal energy calculation
Extended temperature (XT) version available for all sensor rail sizes to measure liquids up to +200ºC / +392ºF
IP68 / Nema 6P option
Namur NE107 diagnostics
With wall-mounted or field-mounted converter
